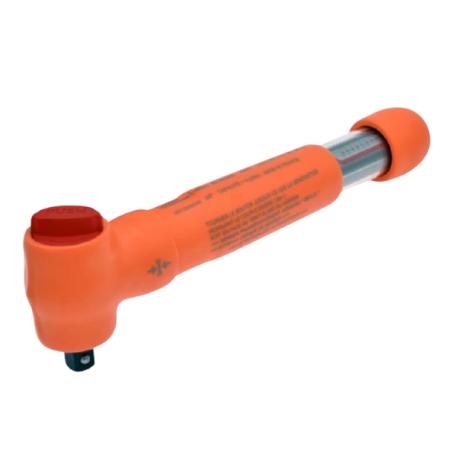

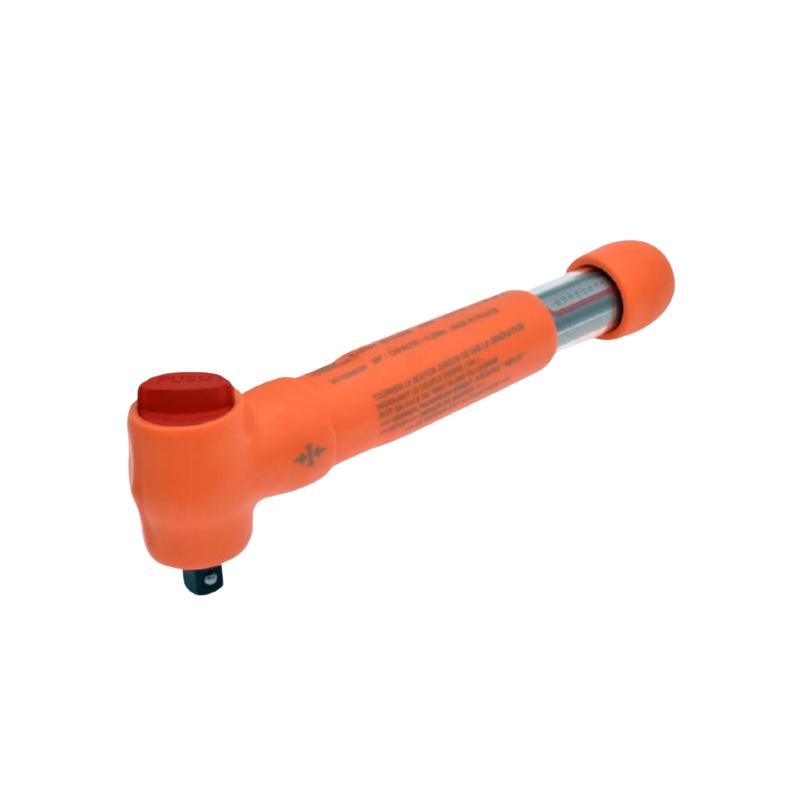

SP.MS100N0VM - Torque wrench 1000V insulated, with mechanical locking mechanism, 4–20 Nm, 3/8"
- Symbol: SP.MS100N0VM
- EAN: 3662424173646
-
Facom
• ▇ 3/8"
• Torque range Nm: 4-20
• Torque range lbf·in: 4-180
• Accuracy: ±3%
• Type II tool - Class A
• Tool marked with a serial number and supplied with a calibration certificate
• Unidirectional wrench
• Length: 230 mm
• Weight: 530 g
• Locking ring for the adjustment system.
• Torque adjustment via a knob in the handle.
• Automatic release when the set torque is reached (audible and tactile signal).
• It is recommended to reset the wrench to the lowest value after use.
• Annual calibration is recommended under normal usage conditions.
• Ball in the square drive specially designed to withstand a force of 500 Nm.
• Accessory release (socket, extension, etc.) by pressing the button on the tool head.
• 72-tooth ratchet mechanism, 5° swing arc (suitable for work in tight spaces).
- Symbol: SP.MS100N0VM
- Wyjście: 3/8"
- L [mm]: 230.00
- Waga [kg]: 0.53
- Nm min: 4.00
- Nm max: 20.00
- Dokładność: ±3%
- Podziałka Nm: 1.00
