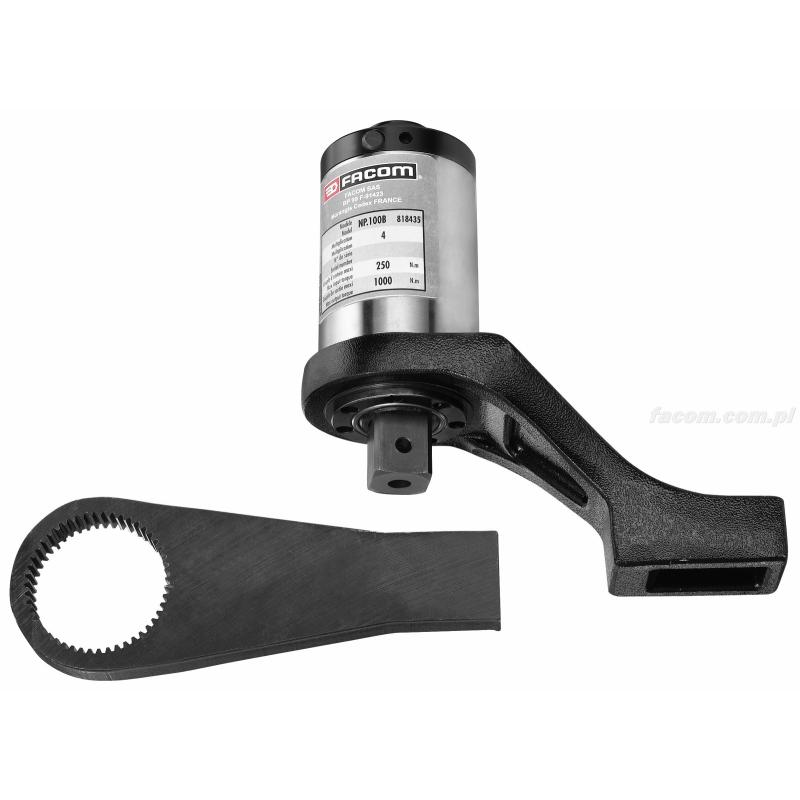

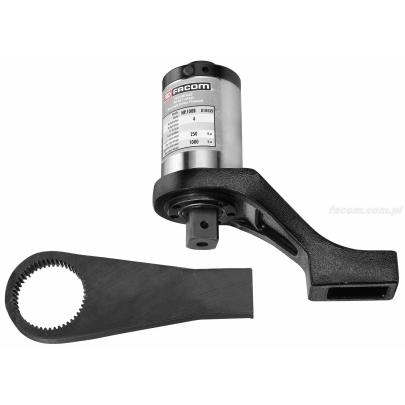

NP.100B - Torque Gear Set
- Symbol: NP.100B
- EAN: 3148518184359
-
Facom
• 1/2” → 3/4”
• Max. starting torque 40 Nm
• Max. final torque 1000 Nm
• Accuracy: ±4%
• Fixed gear ratio: 25:1
• Safety: starting torque limiter
• Anti-reverse system
• Supplied with 2 reaction arms and a replacement drive
Warranty: 3 years
Lead time:
2 to 12 days
27,319.17 zł
24,587.25 zł
net
(30,242.32 zł gross)
The lowest price of the product in last 30 days: 23404,17 zł
- Symbol: NP.100B
- Input: 1/2"
- Output: 3/4"

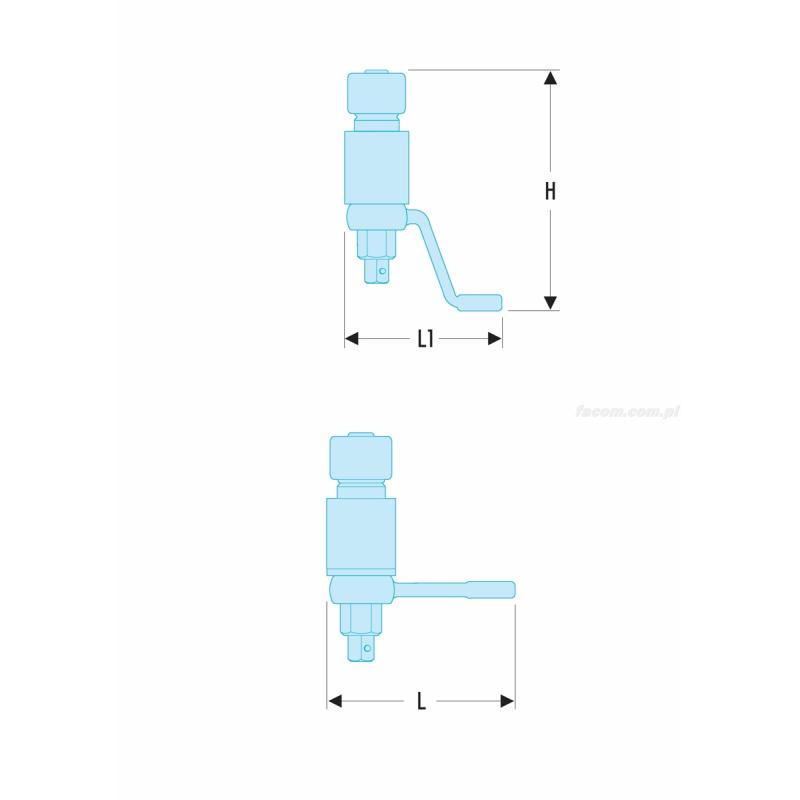

- H [mm]: 218.00
- Diameter: 72.00
- Weight [kg]: 3.00
- Nm max: 1000.00
- Accuracy: ±4%
- Coefficient: 25:1
